Skip to product information
ASUFUN hydrofoil drive system delivering powerful electric propulsion for smooth and efficient water gliding, providing maximum thrust for enhanced speed and stability on the water
  • ASUFUN hydrofoil drive system delivering powerful electric propulsion for smooth and efficient water gliding, providing maximum thrust for enhanced speed and stability on the water
  • Complete ASUFUN electric hydrofoil drive kit featuring motor, controller, and waterproof battery design, delivering maximum thrust for superior acceleration and smooth hydrofoil performance
  • ASUFUN efoil drive system offering easy installation and powerful performance for DIY riders, providing maximum thrust to ensure stable lift and effortless water gliding.
  • Hydrodynamic ASUFUN foil drive ensuring silent operation and optimized energy efficiency, delivering maximum thrust for smooth acceleration and enhanced riding control.

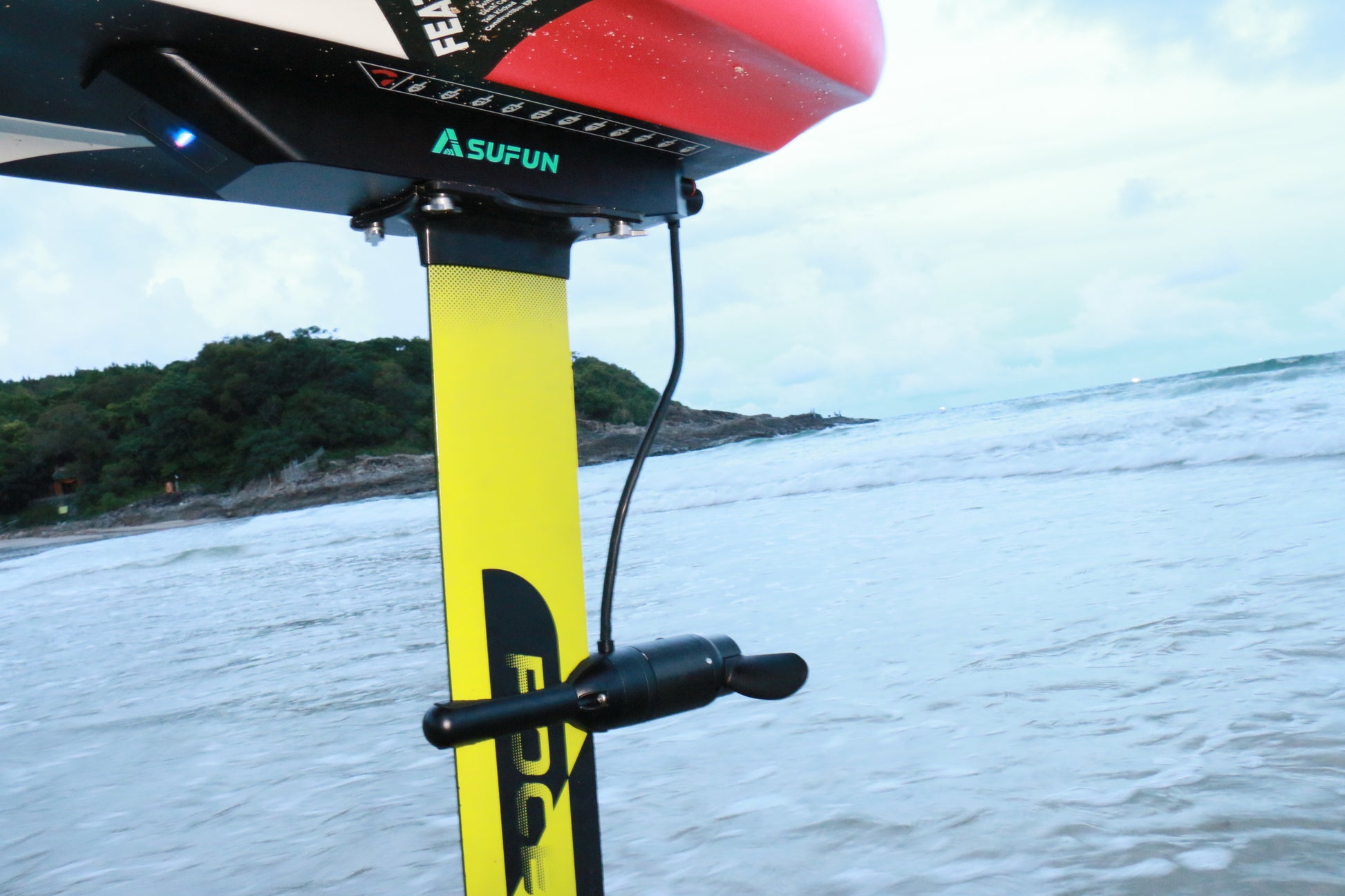

  • Rider using ASUFUN hydrofoil drive system to transform a regular board into a high-performance efoil, achieving maximum thrust for extended lift and effortless water cruising.
  • Close-up of ASUFUN hydrofoil motor system showcasing compact engineering and superior build quality, delivering maximum thrust for powerful acceleration and smooth gliding on water.
Asufun core - Maximum Thrust 41KG,Running time：40-50min OR 1-3H

Asufun core - Maximum Thrust 41KG,Running time：40-50min OR 1-3H

$2,499.00 $5,399.00
Shipping calculated at checkout.
Description

Specifications & Parameters

Category Parameter Value Notes
Battery Rated Voltage 48V
Battery Dimensions 465 × 110 × 55 mm
Battery Capacity 10Ah
Battery Case Material Aluminum Alloy
Charging Time 1–2 hours
Battery Weight 3.4 kg
Battery Model 21700-1382P
Charging Current 5A
Charging Voltage 110–240V
Runtime 40–50 min (Beginner Mode) High-power usage
2–3 hours (Expert Mode) Lower power demand
Battery Life 300 charge cycles
Motor Rated Current 30A
Max Current 80A
Rated Power 3000W
Base Thrust 35 kgf
Max Thrust 41 kgf
Base Material Aluminum Alloy
Propeller Material Aluminum Alloy
Motor Weight 1.5 kg
Motor Speed 2200 RPM
Speed Range 13–20 km/h
Other Specs Waterproof Rating IP68
Remote Battery Capacity 2000mAh
Transmission Range (Water/Air) 1m / 25m

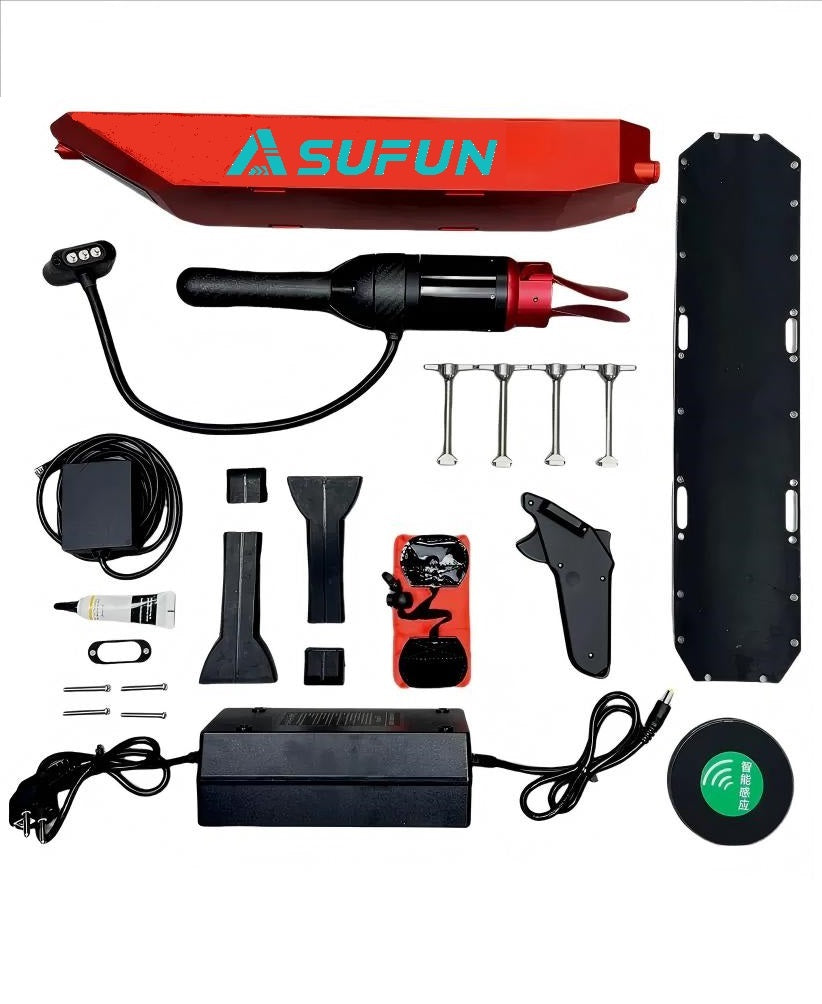

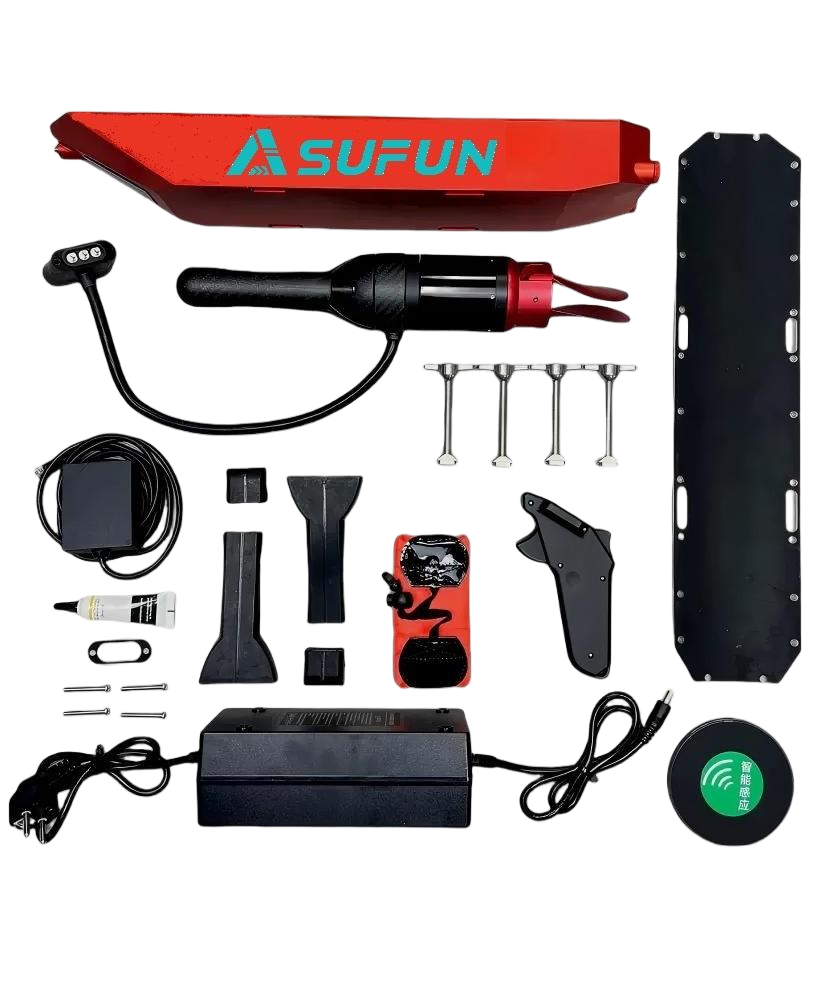

Package Contents Integrated Battery ×1 Included
Motor (with Cable) ×1 Included
Signal Receiver ×1 Included
Remote Control Set ×1 (Controller/Charger/Speedlet)
Charger ×1 Included
Motor Rubber Pads ×3 (Different lengths)
Screws ×8, Lubricant ×1 Included
Battery Pad ×1 Included
Magnetic Button Switch ×2 Included
Storage Box ×1 Included


Care

Product Certifications & Warranty Policy

Model:ASUFUN CORE Hydrofoil Assist (Integrated Battery)

Certifications:CE, IP68, UN38.3

Warranty Coverage

ComponentWarranty PeriodConditions

Battery:12 months / Covers non-human damage

Motor:12 months / Covers non-human damage

Remote Control:3 months / Covers non-human damage
